FRONT AND REAR MAINTENANCE
The LFM series convert outdoor heavy giant billboard into a light and slim solution.


INNOVATIVE DESIGN

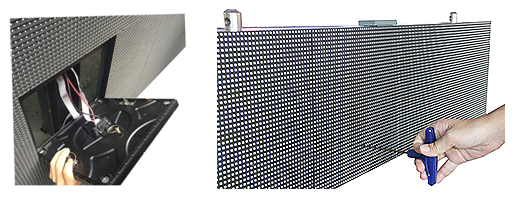

Tile and the other parts are front accessible
Installation could be done from front side of led screen

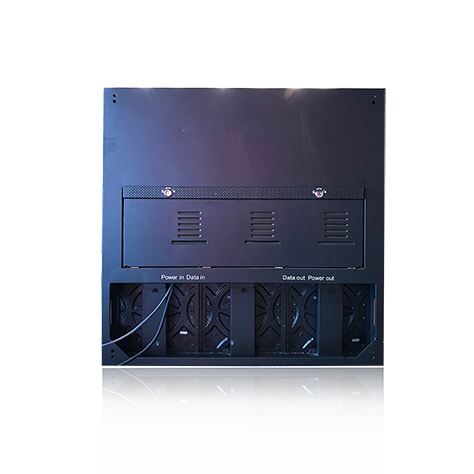

Rear Service is also availble when there is room for its rear side

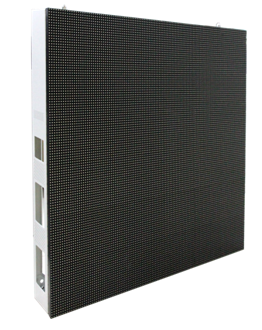

SUPER LIGHT & THIN CABINET

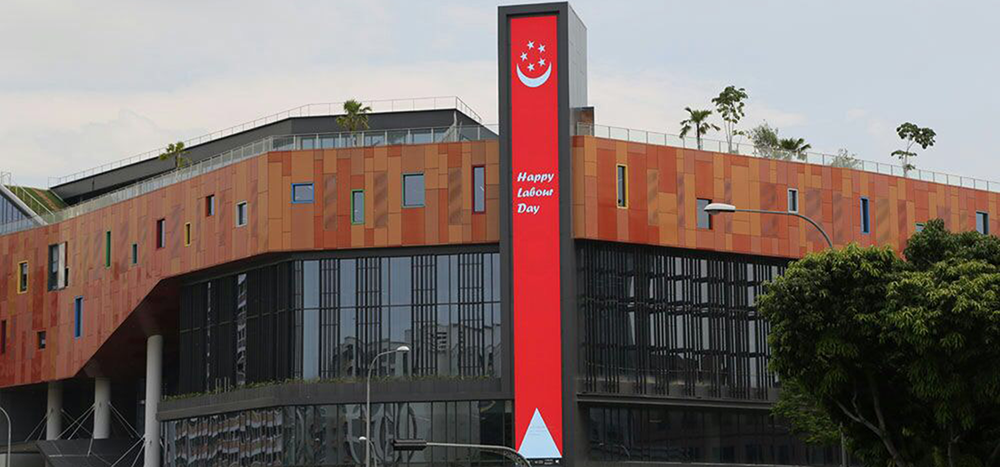

Ultra light and slim solution offers a opportunity of advertisement for more buildings


INNOVATIVE DESIGN
50kg/㎡ for iron & 32kgs for aluminum,
Module size: 320x320mm
Cabinet size: 960x960mm
Thickness: 129mm with module

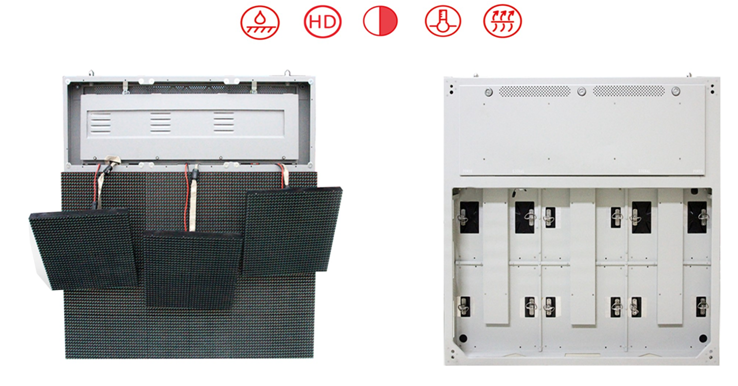

MAGNETIC MODULE
Each individual module is with magnet and locks. 2 strips only to fix and unfix modules, maintenance is a breeze.
SEALED MODULE
IP65 tile with smart breath hole, make sure the air pressure balance for both inside and outside

PRODUCT PARAMETERS

LFM- Panel  Specification
Pixel Pitch	6.67mm	8mm	10mm	10mm	16mm
LED Configuration	1R1G1B SMD3535	1R1G1B SMD3535	1R1G1B SMD3535	1R1G1B DIP346	1R1G1B DIP346
Pixel Density	22477dot/m2	15625dot/m2	10000dot/m2	10000dot/m2	3906dot/m2
Module Size	320X320mm
Module Resolution	48x48dots	40x40dot	32x32dot	32x32dot	20x20dot
Cabinet Size	960x960mm
Cabinet Resolution	144x144dots	120x120dot	96x96dot	96x96dot	60x60dot
Cabinet Weight	30kg	30kg	29kg	29kg	29kg
IP Rating ( front/back)	IP65/65	IP65/65	IP65/65	IP65/65	IP65/65
Scanning Mode	6S	5S	2S	4S	static
Brightness Intensity	5500CD/m2	5500CD/m2	7000CD/m2	7500CD/m2	6500CD/m2
Viewing Angle (H/V)	120°/120°	120°/120°	120°/120°	110°/55°	110°/55°
View Distance	>6.67m	＞8m	＞10m	＞10m	＞16m
Gray Scale	14bit	14bit	14bit	14bit	16bit
Display Scale	16.7M	16.7M	16.7M	16.7M	16.7M
Max.Power Consumption	790W/m²	750W/m²	730 W/m²	750  W/m²	800 W/m²
Ave.Power Consumption	260W/m²	200W/m²	200W/m²	200W/m²	200W/m²
Refresh Frequency	≥1440HZ	≥1440HZ	≥1440HZ	≥1440HZ	≥1440HZ
Environmental	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
Brightness Adjustment		0 - 100  levels adjustable
Control Mode		Synchronous display with control PC by DVI
Support Input		Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power		AC100~240 50/60HZ
Operating Temperature		- 20℃~+50℃
Operating Humidity		10~90% RH
Operating Life		100,000hours
