Shenzhen Scenico Optoelectronic Co., LTD.
INTELLIGENT MODULE DESIGN
Is compatible for column, concave, convex, round 90degree, S shape, wave, flat led screen
INNOVATIVE DESIGN
Varies kind of shape are possible to be made from column, concave, convex, round 90degree, S shape, wave, flat led screen etc

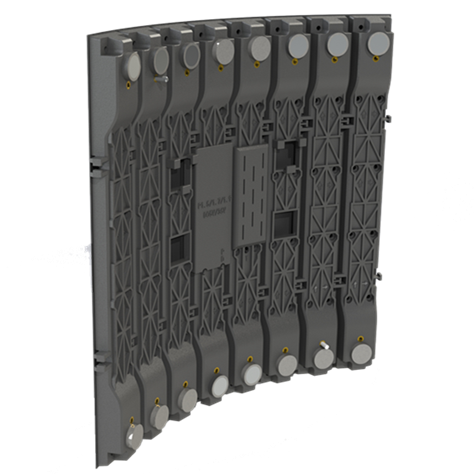

Flexible module with PC housing in segment
Free limits to your design
BUILT-IN CARD
Each module has one NOVA B5s receiving card inside. no need more control box for the installation.
MAXIMUN 90DEGREE IN CONCAVE & CONVEX
Module can be bent in two directions-concave and convex.
0-90degree bendabe in concave and convex.
640mm smallest circle diameter, that means 8pcs modules can do a smallest cylinder.
PARAMETERS
MAXIMUN 90DEGREE IN CONCAVE & CONVEX
Module can be bent in two directions-concave and convex.
0-90degree bendabe in concave and convex.
640mm smallest circle diameter, that means 8pcs modules can do a smallest cylinder.
PARAMETERS
TECHNICAL PARAMETERS
| Scenico Ribbon 250x250mm Flexible Module | ||||
| Model | R1.5625 | R1.73 | R1.953 | |
| Brief Parameter | Configuration | SMD1010 | SMD1010 | SMD1515 |
| Pixel Pitch | 1.5625mm | 1.736mm | 1.953mm | |
| Module Size(mm) | 250 x 250mm | 250 x 250mm | 250 x 250mm | |
| Module Resolution (pixels) | 160 x 160 pixels | 144 x 144 pixels | 128 x 128 pixels | |
| Pixel Density (pixels) | 409,600 | 331,776 | 262,144 | |
| Maximum Bending Angle each module (°） | 90° | 90° | 90° | |
| Recommend Smallest Column Diameter (mm) | 640mm | 640mm | 640mm | |
| Module Weight | 1.1kg | 1.05kg | 1kg | |
| Electronic Parameter | Color Depth | 12-16 bit | 12-16 bit | 12-16 bit |
| Colors | 4096-65536 | 4096-65536 | 4096-65536 | |
| Refresh Rate（Hz） | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | |
| Scan Mode | 1/32 | 1/29 | 1/32 | |
| Optimal Parameter | Brightness | 600-800 nits | 600-800 nits | 800 nits |
| Viewing Distance (mm) | ≥ 1.5mm | ≥ 1.7mm | ≥ 1.9mm | |
| Viewing Angle（°） | 130° | 130° | 130° | |
| Electrical Parameter | Input Voltage（V） | 100-240 V/ 50-60 Hz | 100-240 V/ 50-60 Hz | 100-240 V/ 50-60 Hz |
| Max Power Consumption | 720w/sqm | 640w/sqm | 618w/sqm | |
| Ave Power Consumption | 240w/sqm | 214w/sqm | 206w/sqm | |
| Ambient Environment | Temperature | -20 ℃/+45℃ (working) | -20 ℃/+45℃ (working) | -20 ℃/+45℃ (working) |
| ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ||
| IP Level | IP 41 / IP 40 | IP 41 / IP 40 | IP 41 / IP 40 | |
| Humidity | 10%~60% (working) | 10%~60% (working) | 10%~60% (working) | |
| 10%~90% (storage) | 10%~90% (storage) | 10%~90% (storage) | ||
| Lifespan（hours） | 100000 | 100000 | 100000 | |
| Maintenance Way | Maintenance Way | front service with magnets | ||
| Components | LED | NationStar-golden wire / Kinglight copper wire | ||
| IC | MBI5353 | MBI5353 | MBI5353 | |
