Shenzhen Scenico Optoelectronic Co., LTD.

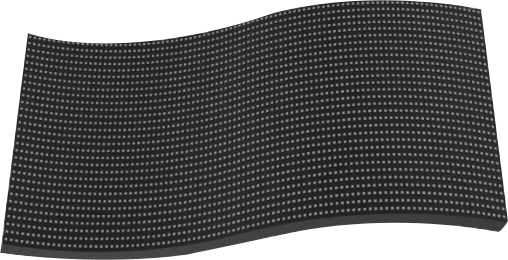

FLEXIBLE MODULE

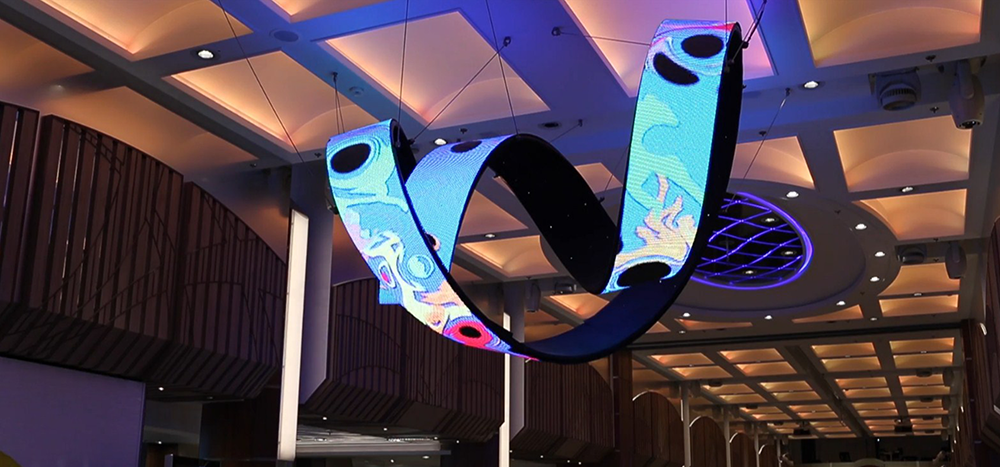

Is compatible for concave, convex, round, S shape led screen
INNOVATIVE DESIGN

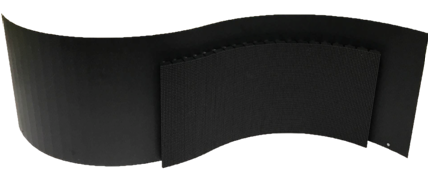

Varies kind of shape are possible to be made from concave, convex, and S shape led screen etc

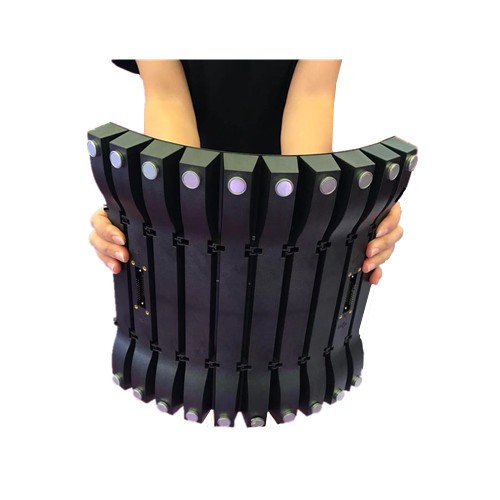

Flexible Module with Housing in Segment
Free limits to your design

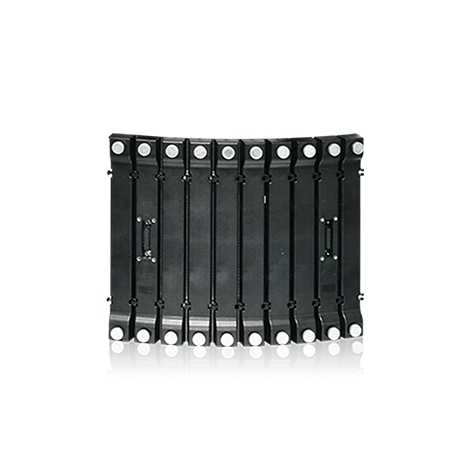

MAGNET-ASSISTED ASSEMBLY
Tiles made from magnesium, and is front accessible
POWER AND DATA COMBINED INPUT
One input combined power and data, save time for assembly and also enable the stability

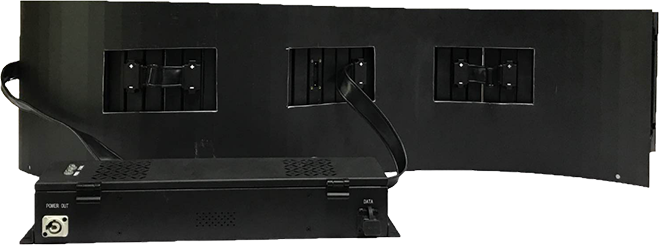

INDEPENDENT BOX
Independent control box could be fixed separately from the structure and moduleCABLING WAY
One control box has 3 output, each output control 2 module, 6 on 1 control box

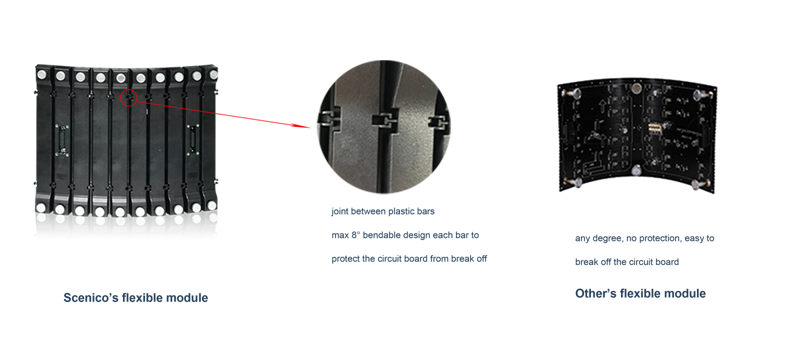

INTELLIGENT DESIGN TO PROTECT PCB & LED
Intelligent Design to protect PCB & LED from too much bend pressure.
INTELLIGENT DESIGN
The degree between each segement is 8°, enable maximum 80 degree in convex and concave per module
The PCB and LED will not be damaged until housing was been broken apart
Less possility to be damaged during installation and maintenance
SLIM MODULE
Module thickness is 26.6mm including magnetSLIM STRUCTURE
Strucuture could be a slim pieces of steel which enable to make varies kinds of shape
PRODUCT PARAMETERS
| Scenico Ribbon Series Flexible Module | |||||
| Model | R1.9 | R2.5 | R3.81 | RO3.81 | |
| Brief Parameter | Configuration | SMD1515 | SMD1515 | SMD2020 | SMD1921 |
| Pixel Pitch | 1.9mm | 2.5mm | 3.81mm | 3.81mm | |
| Module Size(mm) | 304.8 x 304.8mm(1ft*1ft) | 304.8 x 304.8mm(1ft*1ft) | 304.8 x 304.8mm(1ft*1ft) | 304.8 x 304.8mm(1ft*1ft) | |
| Module Resolution (pixels) | 160 x 160 pixels | 120 x 120 pixels | 80 x 80 pixels | 80 x 80 pixels | |
| Module Weight | 1.1kg | 1.05kg | 0.9kg | 1.1kg | |
| Electronic Parameter | Color Depth | 12-16 bit | 12-16 bit | 12-16 bit | 12-16 bit |
| Colors | 4096-65536 | 4096-65536 | 4096-65536 | 4096-65536 | |
| Refresh Rate（Hz） | ≥1920 Hz | ≥1920 Hz | ≥1920 Hz | ≥1920 Hz | |
| Scan Mode | 1/32 | 1/30 | 1/16 | 1/16 | |
| Optimal Parameter | Brightness | 800 nits | 800 nits | 800 nits | 5000 nits |
| Viewing Distance (mm) | ≥ 1.9mm | ≥ 2.5mm | ≥ 3.8mm | ≥ 3.8mm | |
| Viewing Angle（°） | 110° | 110° | 110° | 110° | |
| Electrical Parameter | Input Voltage（V） | 100-240 V/ 50-60 Hz | 100-240 V/ 50-60 Hz | 100-240 V/ 50-60 Hz | 100-240 V/ 50-60 Hz |
| Max Power Consumption | 618w/sqm | 500w/sqm | 350w/sqm | 532w/sqm | |
| Ave Power Consumption | 206w/sqm | 150w/sqm | 105w/sqm | 160w/sqm | |
| Ambient Environment | Temperature | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) |
| ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ||
| IP Level | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 68 / IP 68 | |
| Humidity | 10%~60% (working) | 10%~60% (working) | 10%~60% (working) | 10%~60% (working) | |
| 10%~90% (storage) | 10%~90% (storage) | 10%~90% (storage) | 10%~90% (storage) | ||
| Lifespan（hours） | 100000 | 100000 | 100000 | 100000 | |
| Installation | Installation Way | Fix | Fix | Fix | Fix |
| Components | LED | Kinglight/Nationstar | |||
| IC | ICN2053 | ICN2053 | ICN2053 | ICN2050 | |
| Controller | Control Box | one control 6pcs modules | one control 8pcs modules | one control 8pcs modules | one control 6pcs modules |
